Features: |
| |
1.Low start up speed, 3 or 5 blades optional for different wind speed areas,high wind energy utilization |
| |
2.Easy installation, tube or flange connection optional |
| |
3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output. |
| |
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely |
| |
5.Patented permanent magnet ac generator with special stator,effectively reduce torque, |
| |
well match the wind wheel and generator, and ensure the performance of whole system. |
| |
6.Controller,inverter can be matched accroding to customers’ specific needs |
| |
|
| |
Parameter |
| |
| |

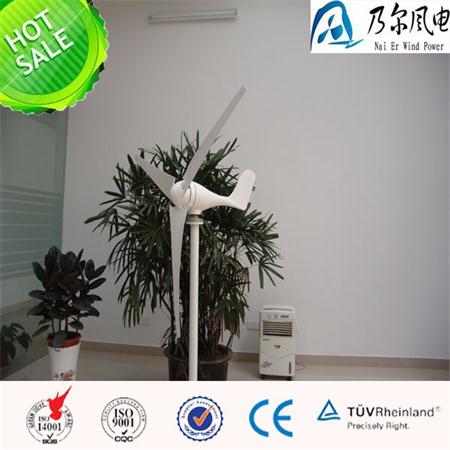

Model |
NE-100S |
Rated power |
100W |
Maximum power |
130W |
Rated voltage |
12/24V |
Start-up wind speed |
2.0m/s |
Rated wind speed |
10m/s |
Survival wind speed |
45m/s |
Top net weight |
9kg |
Wheel diameter |
1.2m |
Number of blades |
3/5 |
Blades material |
Nylon fiber |
Generator type |
Three phase permanent magnet
AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Automatically adjust windward direction |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, ISO14001, ISO 9001, TUV |
|
|
| |
|
|
| |
|
| |
|
| |
|
|
|
| |
|
| |
|
|
