Features: |
| |
1.Gearless, direct drive, low RPM generator |
| |
2.Small size and light weight: Its size and weight are 30% less than those of conventional generators. |
| |
3.Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure. |
| |
4.permanent magnet generator rotor using patented alternator, together with the special stator design, effectively |
| |
reduce the generation of resistance torque, while allowing more wind turbines and generator has good matching characteristics, the unit runs reliability |
| |
|
| |
Parameter |
| |
| |
Model |

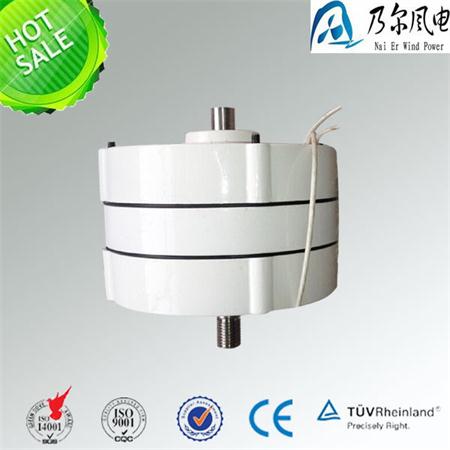

NE-400MP |
Rated Power(w) |
400w |
Max Power(w) |
435w |
Rated Voltage（v) |
12/24v |
Rated rotated speed(r/m) |
600r/m |
Top net weight(kg) |
4.5kg |
Output Current |
AC |
Start Torque(﹤N*M)： |
0.32Nm |
generator |
3 phase permanent magnet
synchronous generator |
Insulation Class: |
F |
Service Life: |
More Than 20 years |
Bearing |
HRB or for your order |
Shaft Material |
stainless steel |
Shell Material |
aluminium alloy |
Permanent Magnet Material |
Rare Earth NdFeB |
Protection Grade |
IP54 |
Lubrication |
Lubrication Grease |
Working temperature |
-40℃ - 80 ℃ |
|
|
| |
|
|
| |
|
| |
|
| |
|
|
|
| |
|
| |
|
|
