Features: |
| |
1. NdFeB, rare earth permanent magnet generator |
| |
2. low start-up torque |
| |
3. small size, beautiful appearance, low vibration |
| |
4. easy installation, maintenance and repair. |
| |
5. permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque |
| |
|
| |
Parameter |
| |
| |

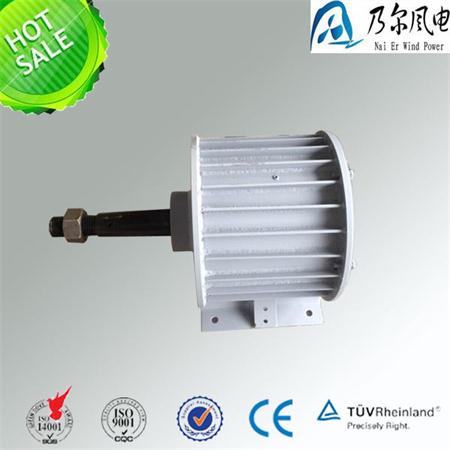

Model |
NE-3KGP |
Rated Power(w) |
3000w |
Max Power(w) |
4800w |
Rated Voltage（v) |
96V/120V |
Rated rotated speed(r/m) |
300r/m |
Top net weight(kg) |
70kg |
Output Current |
AC |
Start Torque(﹤N*M)： |
0.96 Nm |
Rated Torque(N*M): |
95.5 Nm |
generator |
3 phase permanent magnet
synchronous generator |
Insulation Class: |
F |
Service Life: |
More Than 20 years |
Bearing |
HRB or for your order |
Shaft Material |
stainless steel |
Shell Material |
aluminium alloy |
Permanent Magnet Material |
Rare Earth NdFeB |
Protection Grade |
IP54 |
Lubrication |
Lubrication Grease |
Working temperature |
-40℃ - 80 ℃ |
|
|
| |
|
|
| |
|
| |
|
| |
|
|
|
| |
|
| |
|
|
