  Features:
  1.Low start up speed, 3 or 5 blades optional for different wind speed areas,high wind energy utilization
  2.Easy installation, tube or flange connection optional
  3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure which enhance the wind energy utilization and annual output.
  4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely
  5.Patented permanent magnet ac generator with special stator,effectively reduce torque,
   well match the wind wheel and generator, and ensure the performance of whole system.
  6.Controller,inverter can be matched accroding to customers’ specific needs



Parameter




Model

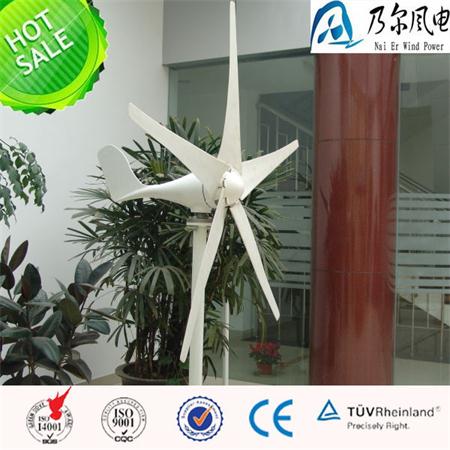

NE-300S

Rated power

300W

Maximum power

230W

Rated voltage

12/24V

Start-up wind speed

2.5m/s

Rated wind speed

11.5m/s

Survival wind speed

45m/s

Top net weight

10kg

Wheel diameter

1.4m

Number of blades

3/5

Blades material

Nylon fiber

Generator type

Three phase permanent magnet
AC synchronous generator

Magnet material

NdFeB

Generator case

Casting aluminum alloy

Control system

Electromagnet/wind wheel yaw

Speed regulation

Automatically adjust windward direction

Working temperature

-40°C  -  80°C

Design life

20 y

Certificates

 CE, ISO14001, ISO 9001, TUV
